7. Triggering & Notifying Telescopes as a Follow-Up Advocate (Shifter)

7.1 Observability & Beyond!

When planning follow-up, it’s important to select telescopes based not only on when it is night at their location, but also on whether they can observe the transient at the required depth.

Observability (see Section 9.2.1) helps you determine which telescopes are in darkness and when. However, it does not tell you:

• Whether a telescope is sensitive enough to reach the target magnitude,

• How many images you should request,

• What exposure time is needed to detect or constrain the event.

This table helps fill that gap by providing detailed capabilites and usage limits of telescopes within GRANDMA’s network.

Use it as a guide to determine what class of telescope is appropriate for the science goal (such as early GRB afterglow, faint kilonova, deep non-detection).

---

Usage Levels of Telescopes

The telescopes in GRANDMA are operating in various ways and are to be solicited by the FAs differently based on the observing scenario.

Code	Usage Frequency	Notes
VF	Very Frequent (~3h/day)	Fully integrated, can be triggered often
O	Occasional (~1/month)	Use judiciously
R	Rare (<1/3 months)	Reserve for high-interest events
VR	Very Rare (<1/6 months)	Use only for high-priority cases
nOP	Not Operational	Currently inactive or unavailable

---

Telescope teams

TAROT team: A. Klotz (IRAP), S. Antier (OCA/IJCLAB), Q. André, A. Dupin, C. Limonta (OCA)

AbAO Team: V. Aivazyan (AbAO), R. Inasaridze (AbAO), N. Kochiashvili (AbAO)

KAO Team: M. Abdelkareem (NRIAG), Y. Hendy (NRIAG), A. Takey (NRIAG)

FRAM-Auger Team: M. Jelínek (ASU), S. Karpov (FZU), M. Mašek (FZU)

AST3-3 and YAHPT Team: J. Chen, A.V. Filippenko, J.J. Geng, Y.L. Hua, X.Y. Li, T.R. Sun, W. Zheng

OHP/MISTRAL Team: C. Adami, E. Bernaud, S. Boissier, C. Dubois, W. Mercier, A. Saccardi (GEPI)

NAO Team: B.M. Mihov (NAO), L. Slavcheva-Mihova (NAO)

Skynet Team: D. Dutton (UNC), D. Reichart (UNC), D. Schlekat (UNC)

OST: R. Hainic, F. Rünger (UnP)

A. Prompt Response - Automatic / Semi-Automatic Triggering

Asia Time Zone Semi-automatic

Telescope	Aperture	Filters	Nominal upper limit	Trigger Type	Observational Rate	Contact / Notes
TAROT/TNC (NC)	0.18m	no filter	17 max	Automatic	Not Operational	Will be operational in July 2025, FA contact: A. Klotz (aklotz@irap.omp.eu)
TAROT/TRE (La Réunion)	0.2m	no filter	19 max	Automatic	Very Frequent	Slack @Sarah to check if images are taken and online analysis for triggering. Images are taken automatically for GRB/SWIFT/Fermi, but the current status is not reported in Skyportal (thus, contact Sarah). For SVOM events, you can trigger via Skyportal, for example in 10x180s in ‘Clear’ in the first hour (based on the gamma-ray or x-ray localisation), but normally it is done automatically by Skyportal itself (but needs some checks)
Les Makes-60	0.6m	gr (TBC)	20 mag in 6x120s and 21-21.5 in 30 min	Semi-auto	Occasional	Email for observations: frederic.vachier@obspm.fr and A. Klotz (aklotz@irap.omp.eu, available from 18h to 22h for prompt observations, images: ask A. Klotz to upload, analysis by DAG.
TRT/GAO (China)	0.8m	TBC	TBC	Semi-auto	Very Rare	Trigger via Skyportal by FA; ask Aom (manasanun_t@cmu.ac.th) by email or Slack (@Aom), check in Skyportal the measurements or recontact Aom to upload results. You can perform revisits on the telescopes as it is reaching a good sensitivity. Sometimes you are asking for a certain number of images, but you do not have the time allocation
TRT/SBO (Australia)	0.8m	Johnson	20 mag in B and I in 30 min, 21.8 mag in R and V in 30 min	Semi-auto	Frequent	Same Process as TRT/GAO

Europe Time Zone Semi-automatic

Telescope	Aperture	Filters	Mag Limit	Trigger Type	Observational Rate	Contact / Notes
FRAM/CTA-N (La Palma)	0.25m	RI	17 in a couple of min	Automatic	Very Frequent	GRB/Swift program is automatic (requires agreement if we have some publication planned) –> Contact @Mašek on Slack if interested. For SVOM, contact @Sergey Karpov or @Mašek via Slack (no need to specify exposure details). Check with @Mašek if results are uploaded to Skyportal, as the analysis is performed by Martin
TAROT/TCA (France)	0.25m	gri	19 in 30 min, 16-17 for 60s	Automatic	Very Frequent	Follow same instructions as TAROT/TRE.
OHP/IRiS (France)	0.5m	ugriz	19 mag in couple of min	Semi-Automatic	Not operational for GRANDMA yet	Possible to trigger but no analysis will be performed (images in raw mode). To trigger, ask via Mattermost S. Basa (https://mattermost.osupytheas.fr). Contacts: S. Basa, Jean-Grégoire Ducoin, Francesco Magnani, Sarah Antier, Dahlia Akl (they have access and can act as intermediaries), or contact Stéphane Basa directly (stephane.basa@lam.fr) @stéphanebasa.
Abastumani-T150 (Georgia)	1.5m	ugriz	21 mag 10 min, 22.5 in 1	Semi-auto but currently manual	Rare	Request to @Nino for observations, and check on measurements reports by Nino on SP, the automatic system is not operational

America Time Zone

Telescope	Aperture	Filters	Mag Limit	Trigger Type	Observational Rate	Contact / Notes
FRAM/Auger (Argentina)	0.3m	Clear, RI	17 mag nominally	Automatic	Very Frequent	Same process as FRAM/CTA-N.
TAROT/TCH (Chile)	0.25m	gri	g, r, i: < 180s (18–19 mag), > 30 min (20 mag)	Automatic (fastest)	Very Frequent	Same process as TRT/GAO.
VIRT (USA)	0.5m	ugriz	19 mag in 1 min (tentative)	Automatic?	Occasional	Should be automatic once Bruce has repaired (expected September 2025). Current process: contact @Priya Gokuldass via Slack or email (priyadass.94@gmail.com) or Bruce Gendre (bruce.gendre@uvi.edu) for triggering. Do not hesitate to perform revisits. The team requests to be notified for prompt scheduling observations between 10h UTC and 04h UTC.
TRT/SRO (USA)	0.8m	RV	21 mag in R and V in 50 min	Semi-auto	Frequent	Same process as TRT/GAO.
TRT/CTO (Chile)	0.8m	griBVR	14x600s 22.1 in r-band, 11x300s 22.3 in V	Semi-auto	Frequent	Same process as TRT/GAO. A new telescope that joined the network

---

B. Regular Telescopes (by contact for observations via FAs)

Asia Time Zone

Telescope	Aperture	Filters	Mag Limit	Observational rate	Contact / Notes
TNT (China)	0.8m	BVRI	20	Occasional	WeChat via “Kilonova catcher & GRB catcher project” / or if you don’t have access to wechat, email Xiaofeng Wang wang_xf@tsinghua.edu.cn, the telescope is not automatic and some night are not allocated to TSU’s group. Trigger this team only is a well localized optical counterpart is found and the first night post T0, since the obs are quite shallow. It is not necessary to trigger this telescope for SVOM GRBs as the time of the telescope is allocated directly to the SVOM team for it. Provinding the up to date upper limit is enough for this team. Don’t hesitate to ask all colors possible
SHAO/T60 (Azerbaijan)	0.6m	UBVRI	19 max, 18 mag in 10 min	Very Rare	The telescope is shared by multiple groups. The GRANDMA team is not necessary at the site of the telescope. The best way of contact is either @Zumrud or @Shabnam via slack, either Nariman Ismayilov ismailovnshao@gmail.com by email, the stacking is not necessarily done by the team but the team can provide results via skyportal. The FA can ask sistematically observations to the team, if the source is quite bright (first night)
UBAI-NT/ST (Uzbekistan)	0.6m	UBVRI	up to 20 mag in 10 min in R band	Frequent	Periodic closure at Winter (from XX to XX), 45 min everynight for GRANDMA so you can ask systematically via slack @Yodgor and @Otabek Burkhonov. There is a period when the observatory is closed
Abastumani-T70 (Georgia)	0.7m	UBVR	10 min in R around 20 and 21.5 mag in 90 min	Frequent	Ask @nino from Slack or by email Nino Kochiashvili nino.kochiashvili@iliauni.edu.ge or Raguli Inasaridze raguli.inasaridze@iliauni.edu.ge, the I filter is not working. The team can adjust observations based on upper limit asked, and the team will report directly the measurements in Skyportal (no need to analyse the data)
GMG-2m (China)	2.0m	UBVR/griz	21.5 max (with spectra 19 mag)	Occasional	Contact Jirong Mao jirongmao@mail.ynao.ac.cn contact by chat or by email on GRB/Swift/Fermi (but not for SVOM, it is under the SVOM time). Sometimes the data won’t be necesarly shared with GRANDMA, but it is good to systematically asking and the revisits
Xinglong-2.16 (China)	2.16m	UBVR/griz ?	20.5 max (with spectra 18 mag)	Rare	Detection only !!, email Xiaofeng Wang wang_xf@tsinghua.edu.cn, the telescope is not automatic and some night are not allocated to TSU’s group. You can ask multiple colors. The data will be in charge by the GRANDMA/DAG or ask Haowei Peng for reducting the data and upload it in Skyportal

Europe Time Zone

Telescope	Aperture	Filters	Mag Limit	Frequency	Contact / Notes
ASO (Morocco)	50cm	BGRI	21.5 in R max	Frequent to Very Frequent	Whats App Ali (+212 661141372) or aziz5200@live.com, the telescope is semi-automatic run by a prefessional amateur, the FA should provide strict guidance with exposure, filter, and number of images, position. Aziz does not have access to skyportal. Maybe a standard is 20x180s in R and I and propose revisits
HAO1 (Morocco)	30cm	BGRI	19.5 mag	Frequent to Very Frequent	Same as ASO
KAO (Europe)	2m	griz	21.5/22.0 mag in r (45 min),	Frequent	Contact Mona or Eslam via Slack. The team knows how to reduce the data and imported in Skyportal, if no response, contact Ali Takey ali.takey@nriag.sci.eg
Pic du Midi (France)	1m	gri + IR	22.5	Rare	Late time obs (not request obs in advanced for measurements in couple of days). The team is formally in GRANDMA. The team is not present on site, the level of success rate is quite low. Once observations are performed, the team is awake during the night. For these reasons, the observations must be highly valuable (as for short GRBs) or part of a publications (late time). So the process is that the WC coordiator contacts Colas Francois Francois.Colas@obspm.fr, to understand if there is someone at the site to observe the target. Do not wait too long, as sometimes a trip to Pic du Midi is planed for the coming days, so the process would be better to ask when the source is still bright and interesting, if someone plan to be on site in the coming days and propose different epoch of observations as C2PU (a road map for a week). The data are compiled by A. Klotz and posted in owncloud. The DAG can performed its analysis. A GCN can be sent but not necessary

America Time Zone

Telescope	Aperture	Filters	Mag Limit	Frequency	Contact / Notes
OPD (Brazil)	0.6m ?	RV ?	22 mag in 1h for sure	Occasional	Wagner by email for sure WAGNER CORRADI wbcorradi@lna.br, by slack @nelio sasaki is a good contact for observations. The team has access to fully to the telescope or not, so it is very better to ask long term observations WHEN it is Needed, so when it is a confirmed candidate. You can ask revisits but only if you receive previous results of detection from the team. The team is currently exercising on the analysis, the DAG must finish their traning so that they can upload their results directly in skyportal

---

C. Telescopes with Specific Contact

Asia + Europe + America Time Zones

Telescope	Aperture	Filters	Mag Limit	Frequency	Contact / Notes
KNC	From 15 cm to 50 cm	BVRI, griz, Green	15 to 20	very frequent	KNC is GRANDMA’s amateur network, coordinated via Slack and kilonovacatcher.in2p3.fr. Amateurs receive GRB alerts automatically but need to be contacted manually when GRANDMA chooses to observe a particular alert. When GRANDMA is observing, the role of the FA is to contact TURPIN Damien damien.turpin@cea.fr and Cristina Andrade andra104@umn.edu, who manage KNC participation and coordination. Share relevant localization information, this can be done in #observations. Cristina Andrade and Damien Turpin track which amateurs respond and whether observations are submitted. They also verify observation timing and appropriateness for the target. It is the responsibility of the FA to follow up with Cristina Andrade and Damien Turpin about if the images were uploaded directly to OwnCloud or the KNC website. Amateur astronomers do not perform photometry. We must consider the observations for GCN production. Damien Turpin is primarily responsible for extracting photometric measurements from KNC images. In some cases, members of the DAG (Data Analysis Group) assist. Cristina Andrade typically compiles the photometric results and uploads measurements to SkyPortal, referencing the contributing amateur(s) in the comment or annotation. Shifters do not upload KNC results to SkyPortal unless explicitly delegated.
Skynet	From 15 cm to 50 cm	BVRI, griz, Green	19	very frequent if go	dschlekat@unc.edu (very motivated graduate) and dan.reichart@gmail.com (PI). The collaboration is running independantly outside of GRANDMA for triggering observations. The GRB chair or the corresponding coordinator or dahliaaql01@gmail.com dahliaaql01@gmail.com can contact them for collaboration usually post observations, after it is approved by the GRB chair

Asia Time Zone

Telescope	Aperture	Filters	Mag Limit	Frequency	Contact / Notes
ASTEP (Antarctica)	50cm	Red/Blue simultaneous	20 mag	Rare	It should be used with care, as only for very southern targets. To initiate observations, the shifter must make a proposal to the weekly coordinator, and the WC will contact sarah.antier@oca.eu to propose the observation (RA, DEC, magnitude limit in R). We can observe long periods (Tristan is the principal coordinator). The data will be analyzed by S.Antier and uploaded to owncliyd. After that, the DAG must perform the measurements.
YAPTH (China)	80cm	griz (?)	22.5 max ?	Frequent	The telescope is a partner of GRANDMA. You can write an email with justification of why it is important to observe, you can provide the coordinates and the expected magnitude in different filters. The data are not uploaded in owncloud and are transmitted by email. The team usually provides independant measurement. The contact is trsun@pmo.ac.cn
AST3-3 (China)	50cm	g	21	Frequent	The telescope is a partner of GRANDMA. You can write an email with justification of why it is important to observe, you can provide the coordinates and the expected magnitude in different filters. The data are not uploaded in owncloud and are transmitted by email. The team usually provides independant measurement. The contact is trsun@pmo.ac.cn

Europe Time Zone

Telescope	Aperture	Filters	Mag Limit	Contact	Notes
C2PU (France)	1m	griz	22.5	Rare	Late time obs (not dot request before the source reached 21.5 mag magnitude). The telescope is shared between amateur and professional astronomers, and at times, the wide-field imager may not be mounted. Once validated by the WC, the WC can contact the amateur astronomer Serge Brunier (serge.brunier@wanadoo.fr, cc S. Antier) to request observations — but only if the data will be in publications (not for alerts). The observation proposal should be flexible, offering several possible periods. For example: “Would you be available to observe tomorrow at XX magnitude using [suggested exposure time] and [number of images]?” You can also propose alternative days (e.g., in two days) and vary the filters in one single proposal. The proposal should avoid being too direct, more in the form of collaboration. Serge must has the validation to operate from the PI J-P Rivet. Once observations are completed, the team must reach out to the amateur to obtain the raw data for analysis offline.
SPECULOS/ARTEMIS (Canaria Islands)	Unknown	grz	23.5	Rare	Late time obs. The contact with the team goes trough the GRB chair or the PI. The telescopes is only activated in case of publication as the project is oriented on exoplanet and very limited time is devoted to another project. We ask to the FA and WC to make a proposal to the GRB chair and PI with multiple period proposals
NAO-2m (Bulgaria)	2m	Unknown	23	Email PI
GTC	10.4m	griz	25	Antonio / Feli

America Time Zone

Telescope	Aperture	Filters	Mag Limit	Contact	Notes
Euler (Chile)	1m	griR (?)	23.4	Email Frederic Dux
SPECULOS/Something	Unknown	grz	23.5	Email Sarah / Marion
CFHT	3.6m	griz	25	PI Sarah Antier

---

D. Telescopes with Unknown Status

Asia Time Zone

Telescope	Notes
Zadko (Australia)	Possibly not working anymore
AZT-8 Lisnyky	The contact is Alexander Baransky abaransky@ukr.net but the team is facing large issues due to the war
Shao/2M	Altough mentionned in the GRANDMA list, we never obtained images from the telescopes
New UBAI Telescope 1m	Planned next year, waiting from feedback from Yusuf
SNOVA	Replaced by TNOT, not functionning anymore
Ali-50	The telescope is broken and the team does not have access, another telescope has been in operation in Tibet by the TSU team
KANATA	1.5-m, B, V, R, I, z’. The contact is from A. Takey. We never operate with this group but they are thrilled to collaborate. In case of a good target but not necessarly for publication, the WC (after validation of the GRB chair or the PI) can send a request to Kawabata kawabtkj@hiroshima-u.ac.jp in a form a very kind email for exemple : zwe have a very nice source XX going with 13:14:42.42 +05:01:50.27 / (α,δ= 198.676730, 5.030630) (l,b=318.045334, 67.217086). And for private info (pls do not share) the source is still bright and must be around 21/21.5 mag in couple of hours. Would you be in position to trigger yoru telescopes and observe it pls ? this weekend and monday ?

Europe Time Zone

Telescope	Notes
OAJ-T80 (Spain)	Need Spanish partner
OHP-T120 (France)	Possible via MISTRAL collaboration
OSN-T120 (Spain)	No recent contact
OWL / MOSS / CAHA-2.2m / NAO-1m / TTT	?
OST CDK (Germany)	RI, 17 max, Occasional, Contact Rainer Hainich < hainrich@astro.physik.uni-postdam.de>, but it is a telescope based on the top of the roof of the astrophysical department, so there is no possible observation during the night if observations have not been planed before, data are usually uploaded in owncloud, but Rainer can be trained to run stdpipeweb

America Time Zone

Telescope	Notes
SEDVM / ZTF / TT	?
Colibri	Partnership unknown
SOAR (4m)	?
KAIT	Automatic

---

Where to Find Telescope Aperture in SkyPortal

To determine which telescope to request based on the brightness of the event, it’s important to know the aperture of the telescope. This helps you estimate whether the telescope can reach the required magnitude (see Section 7.1 for guidelines).

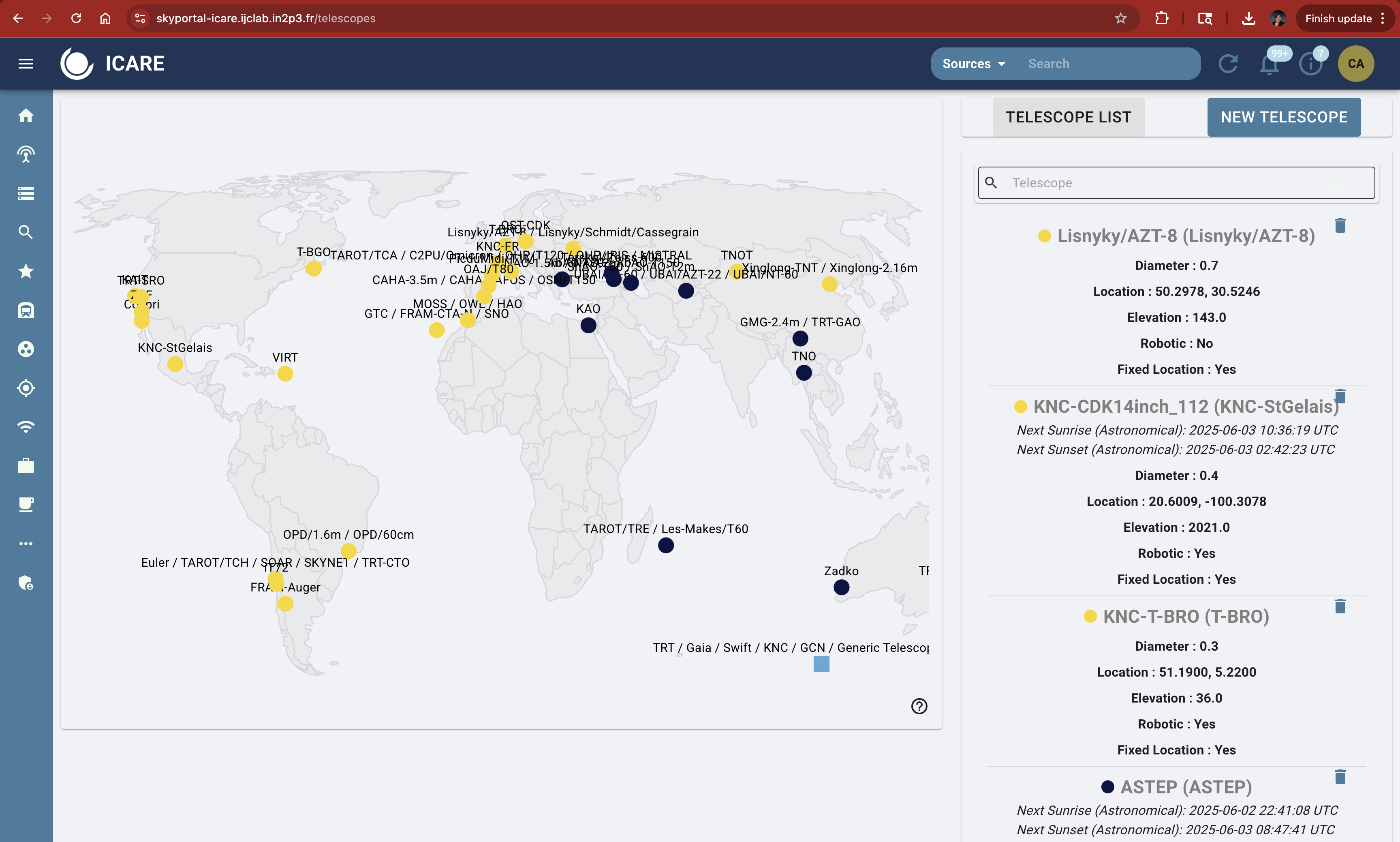

You can find this information directly in SkyPortal:

1. Go to the “Telescopes” or “Instruments” page:
   skyportal-icare.ijclab.in2p3.fr/telescopes

2. Click on a telescope marker on the map or scroll through the list on the right.

3. The aperture will be listed under each telescope’s name (e.g., Diameter: 0.4 for a 40 cm telescope).

4. Use this diameter with the table in Section 7.1 to select the correct number of exposures and exposure times.

Example:
A telescope with 0.4 m diameter (like KNC-StGelais) is suitable for events up to ~19.5 mag, with 4–6 images of ~300 seconds each.

---

Tips for Shifters:

• Match the estimated brightness of the event (from GCNs or SkyPortal) to the appropriate aperture class.

• When uncertain, start with a moderate plan: e.g., 6×300s in R for a 0.6–0.8 m class telescope.

• If you expect fading, prioritize shorter exposures sooner.

• Always document your choices and reasoning in the shift log and SkyPortal comments.

• Don’t request deep observations ( >22 mag) from small telescopes — it wastes time and effort.

• If in doubt, contact the Weekly Coordinator or Core Team for help selecting telescopes.

7.2 Contacting Telescopes

In GRANDMA, we notify telescopes via Slack. At the time of a quality alert, you will @channel and send details of the event AND send an email to the collaboration. You will continue to do so for 24-48 hours as we look for a optical counterpart. If it is not found in that time, we stop observing by sending a message to #observations.

Once you have determined observability and determined the right telescope, send a message in #observations with the name of the event (S###### or GRBYYMMDD) and then tag the telescope representative.

I reccomend sending an email notification for high priority events. Check with the Weekly Coordinator if this is applicable.

For GRBs, make sure to include the GCN link and the coordinates when contacting telescopes. As well, send an email with the same information AND put your request in #observations.

For GW events, when the plans arrive, you can contact the telescopes individually by tagging or “@contact_person” in the #observations channel as night arrives or if they are experiencing night when the alert arrives. When plans arrive, you send an email AND notify, again, in #observations.

For example, a message notifying #observations about an alert could look like this:

This example is for a GW alert:

The second example is for a GRB alert from a GCN event:

GO GRANDMA: GRB 250221A Swift detection of a burst with an optical counterpart, GCN 39396. Uncertainty of 3 arcmin.

@channel Can you please observe?

Coordinates: RA, Dec 59.477, -15.139 which is RA(J2000) = 03h 57m 54s Dec(J2000) = -15d 08’ 18”

@Aom with TRT-SRO? @Sergey Karpov @Martin Mašek with FRAM-CTA-N then FRAM-Auger? @WAGNER CORRADI OPD/1.6m and 60m

OwnCloud Link: https://grandma-owncloud.lal.in2p3.fr/index.php/apps/files/?dir=/Candidates/GRB/GRB250221A&fileid=1246869

Source: https://skyportal-icare.ijclab.in2p3.fr/source/GRB250221A

Important!

In case of GW alerts, the telescope teams need to provide feedback on whether they received the plan and if they plan to observe. If you do not hear from them, ensure you have some new information 2 hours before their night.

You can see the list of telescopes in dark or sunlight on the main dashboard of SkyPortal.

As mentioned previously, it is ideal to have a small sky area for the GW alert. Therefore, if possible, it’s good to wait for the 50% sky area to activate observations for BNS and BHNS GW alerts.

The sky localization of the GW alerts given by the LVK collaborations usually looks like a banana shape (often large), and for this reason, we do not have only one localization of the source but several. Telescope teams will need to receive more than one localization to cover the entire sky map. Depending on the FOV of the telescopes, covering the entire sky map might be time-consuming. Instead of giving regions within the sky maps to observe, we select galaxies within it for targeting.

NOTE: Make sure to send an email when stopping observation and to classify the source as STOP GRANDMA when done.

You can check out Sarah’s explanation here: Watch Video
